Ceramic Fiber Modules – Premium Furnace Lining Solutions in Maharashtra
MMP Refratech is a leading ceramic fiber module manufacturer & supplier based in Pune, Maharashtra, India. Our modules are made from high-quality spun ceramic fiber blankets, folded and pre-compressed with advanced anchor systems. They are designed to simplify furnace construction, improve lining integrity, and provide excellent insulation performance for industrial applications across India.

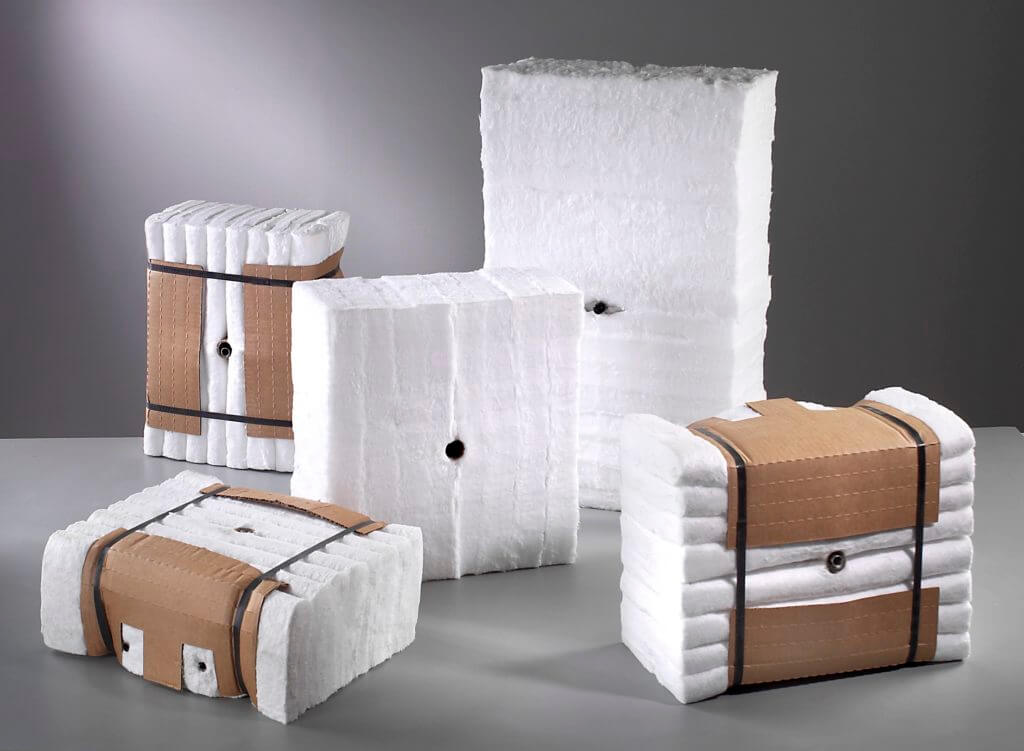

What is a Ceramic Fiber Module?
A ceramic fiber module is a refractory furnace lining solution made from compressed ceramic fiber blankets. These modules can be directly fixed on anchor nails mounted on the furnace shell, offering excellent insulation, refractory performance, and durability. They are widely used in kilns, boilers, furnaces, and high-temperature industrial equipment, ensuring reduced heat loss and energy savings.
Ceramic Fiber Module Specifications
| Specification | RT-1260°C (2300°F) | HTZ-1425°C (2600°F) |
|---|---|---|
| Melting Point | 1780 °C | 1780 °C |
| Maximum Use Limit | 1050 °C | 1200 °C |
| Colour | White | White |
| Fiber Diameter (µm) | 2.7 - 3.6 /td> | 2.7 - 3.6 |
| Linear Shrinkage (24h soak) | ≤ 2.5% | ≤ 2.5% |
| Tensile Strength | ≥ 50 kPa | ≥ 50 kPa |
Key Features & Benefits
- Lightweight and low heat storage – improves energy efficiency
- No gaps after installation – ensures tight furnace lining
- Anchors remain cool – placed away from hot surfaces for longer life
- Excellent thermal shock resistance – suitable for sudden temperature changes
- Customizable sizes & densities – tailored to client requirements
- Durable and long service life – built for industrial-grade use
Applications of Ceramic Fiber Modules
Our ceramic fiber modules are widely used in:
- Industrial furnaces and heating device linings (metallurgy, petrochemicals, machinery, non-ferrous metals)
- Continuous and batch kilns
- Low mass kiln cars
- Roller hearth furnaces
- Gas turbine exhaust ducts
- Boiler and stack linings in power generation
- Duct and door linings
- High-temperature furnace insulation
Ceramic Fibre Module Sizes & Availability
| Grade | Density (Kg/m³) | Size (mm) | Packing |
|---|---|---|---|
| RT-1260°C / HTZ-1425°C | 128 | 305 × 305 × 125 | 10 Pcs / Box |
| RT-1260°C / HTZ-1425°C | 160 | 305 × 305 × 150 | 8 Pcs / Box |
| RT-1260°C / HTZ-1425°C | 192 | 305 × 305 × (175, 200) | 6 Pcs / Box |
| RT-1260°C / HTZ-1425°C | 240 | 305 × 305 × (225, 250, 275, 305) | 4 Pcs / Box |
Note: Other sizes available on request subject to minimum order requirements
Why Choose MMP Refratech for Ceramic Fiber Modules?
- Trusted Ceramic Fiber manufacturer & supplier in Pune and Maharashtra
- ISO / CE certified insulation products
- Wide range of grades, densities & dimensions
- Customized industrial insulation solutions
- Nationwide delivery with technical support
