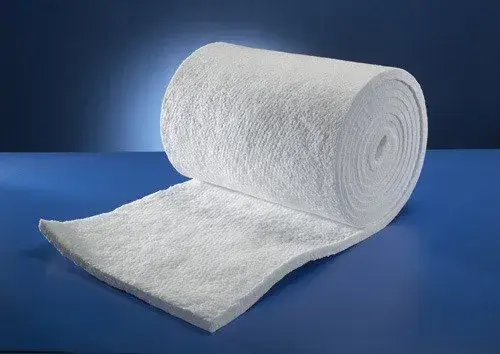

Ceramic Fiber Blanket
MMP Refratech Ceramic fiber blanket is made up from our Bulk fiber a fire-resistant insulation material in white and tidy size, with integrated fire resistance, heat separation and thermal insulation functions, containing no binding agent and maintaining good tensile strength, toughness, and the fibrous structure when used in a neutral, oxidized atmosphere.
Our ceramic fiber blankets are manufactured by bulk fibers prepared using latest spinning process in India. The blanket is light weight, flexible, and available in a wide variety of thickness, widths and densities.
Technical Index :
| Specifications | RT-1260°C (2300°F) | HTZ-1425°C (2600°F) |
|---|---|---|
| Melting Point (°C) | 1780 °C | 1780 °C |
| Maximum Use Limit (°C) | 1050 °C | 1200 °C |
| Colour | White | White |
| Fiber Diameter (µm) (Micron) | 2.7 ~ 3.6 | 2.7 ~ 3.6 |
| Linear Shrinkage (%) after 24 hours soak | 2.5 Max | 2.5 Max |
| Tensile Strength (kPa) | 50 Min. | 50 Min. |
Characteristics :
- Double needled blanket
- Low thermal conductivity
- Excellent insulation properties, tensile strength, chemical stability
- Low weight comparatively other refractory materia
- Resistant to thermal shock
- Flexible and easy to cut and install
- Good sound absorption
Applications :
- Industrial Furnace, Kiln and Own
- Back and wall lining material.
- Furnace expansion joints, door, roof heat insulation seal.
- High temperature pipe insulation material.
- Pipe covering insulation of commercial dryers and covers
- Heat treating and annealing furnaces
- Furnace door linings, seals and hot face repairs
- Reusable turbine covers
- Veneer over existing refractory
Availability
| Thikness (mm) | Density Kg/m3 | Roll Size Width (mm) | Roll Size Length (mm) |
|---|---|---|---|
| 25 | 64-160 | 610 | 610x7620 |
| 13 | 64-160 | 610 | 610x7300 or 7620 |
| 38 | 64-160 | 610 | 610x5000 |
| 50 | 64-160 | 610 | 610x3650 or 3810 |
Note: Other sizes available on request subject to minimum order requirements
